Table
field types
When you
create a relationship between two tables, the key fields on which the
relationship is based must store data of the same type. For example, if you
want to relate two tables, the key fields must both be defined as short integer
or one of the other supported types.

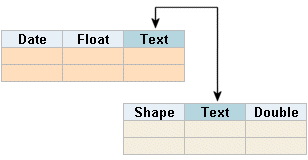

These tables both have a text field
that stores the same data; the tables can be related using these fields as the
key fields.
Not all
field types can be used to create relationships. Supported field formats are
short integer, long integer, float, double, text, and object ID.
Reminder:
Geodatabase field types
The geodatabase supports the following field types for
user-defined attributes in feature class tables and nonspatial
tables.
Name |
|
Size |
Applications |
Short
integer |
-32,768
to 32,767 |
2 |
Numbers
without fractions within specific range; coded values |
Long
integer |
-2,147,483,648
to 2,147,483,647 |
4 |
Numbers
without fractions within specific range |
Single-precision
floating point number (Float) |
Approx.
-3.4E38 to 1.2E38 |
4 |
Numbers
with fractions within specific range |
Double-precision
floating point number (Double) |
Approx.
-2.2E308 to 1.8E308 |
8 |
Numbers
with fractions within specific range |
Text |
Up to
64,000 characters |
Varies |
Names or
other textual qualities |
Date |
mm/dd/yyyy |
8 |
Date
and/or time |
BLOB |
Varies |
Varies |
Images
or other multimedia |
Raster |
Varies |
Varies |
Images
or pictures |
GUID |
36
characters enclosed in curly brackets |
16 or 38 |
Customized
applications requiring global identifiers |
